ZGYX-425 Intergrated down the hole drilling rig for open-cast mining, stone quarry
Product Information Description
This series of products is a drilling rig developed and manufactured by zhejiang zhigao machinery co., LTD. Its standard is equipped with a cab and an automatic drill changing mechanism, with leveling and a special toothed crawler, and walking mechanism, which makes the drill has excellent off-road capability. Equipped with two-stage dust removal function can meet the environmental protection requirements of all mines, and the products are widely used in various engineering construction and mining. With its characteristics of high efficiency, energy saving, environmental protection and safety, it is widely selected by modern green mines.

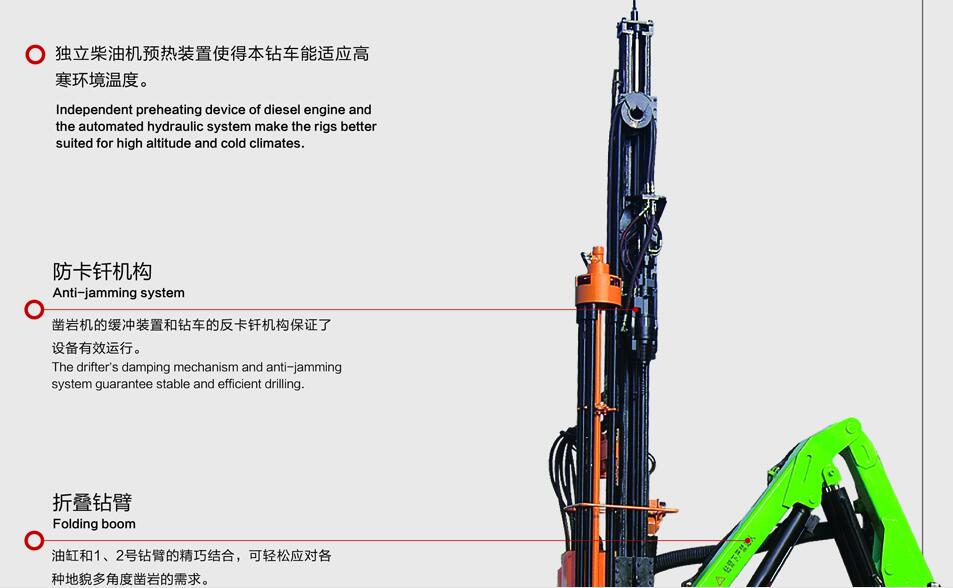

1. Independent preheating device of diesel engine and the automated hydraulic system make the rigs better suited for high altitude and cold climates.
2. The drifter's damping mechanism and anti-jamming.system guarantee stable and efficient driling.
3.The combination of oil cylinder and no. 1 and no. 2 drill arm can easily meet the requirements of drilling in various landforms with multiple angles.
4. Simple but efficient rod handling system consists of reach sensor, mechanic gripper, rod lubrication.device and rod gripper.
5. nomic comfortable extra safe cabin.
1) American and European labors' roof safety standard compliance.
2) Clear and wide view, and environmental friendly glass.
3) All around visibility, low vibration and low noise design made to optimum comfort..
4) Standard Stereo and air conditioning system ensure the operator a relaxed and.enjoyable workplace.
6. Caterpillar or Cummins enaine with global warranty to meet various demands.
7. The enlarged walking motor, the body leveling mechanism and have the function of high and low two-speed walking, flexibly adapt to various complex terrain.
Main Technical Parameters
| ZGYX-425 Parameter List |
| Rock drilling machine | Drill and propeller |
| Model number | ZY-104 | Drill boom Angle | "-42º～+73º |
| Manufacturer | ZGYX | Swing arm Angle | Left 26º Right 27º |
| Drill diameter (mm) | 76～115 | Elevation Angle | Before 99º After36º |
| Slewing Speed(r/min) | 0～135 | Pendulum Angle | Left95º Right15º |
| Max rotary torque (N.m.) | 1460 | Drill stroke (mm) | 4200 |
| Max impact frequency (HZ) | 60 | Driving force/lifting force (kn) | 22 |
| Drill pipe | T45,T51*3.66m | Propulsion compensation (mm) | 1400 |
| Hole deep(m) | 25 | Total length of propeller (mm) | 7257 |
| Max impact power (kw) | 20 | Drill pipe Length | 3660 |
| Engine | Bar changer | 6+1 standard |
| Manufacturer | Caterpillar | Model number | C7 |
| Rated power (kw) | 168 | Ground clearance (mm) | 460 |
| Operating revolution (RPM) | 2200 | Track frame swing Angle | ±10º |
| Fuel tank capacity (L) | 310 | Max travel speed (km/h) | 3.2 |
| Screw air compressor | | |
| Manufacturer | ZGYX | | |
| Head factory | GHH | | |
| | | | |
| | | | |
